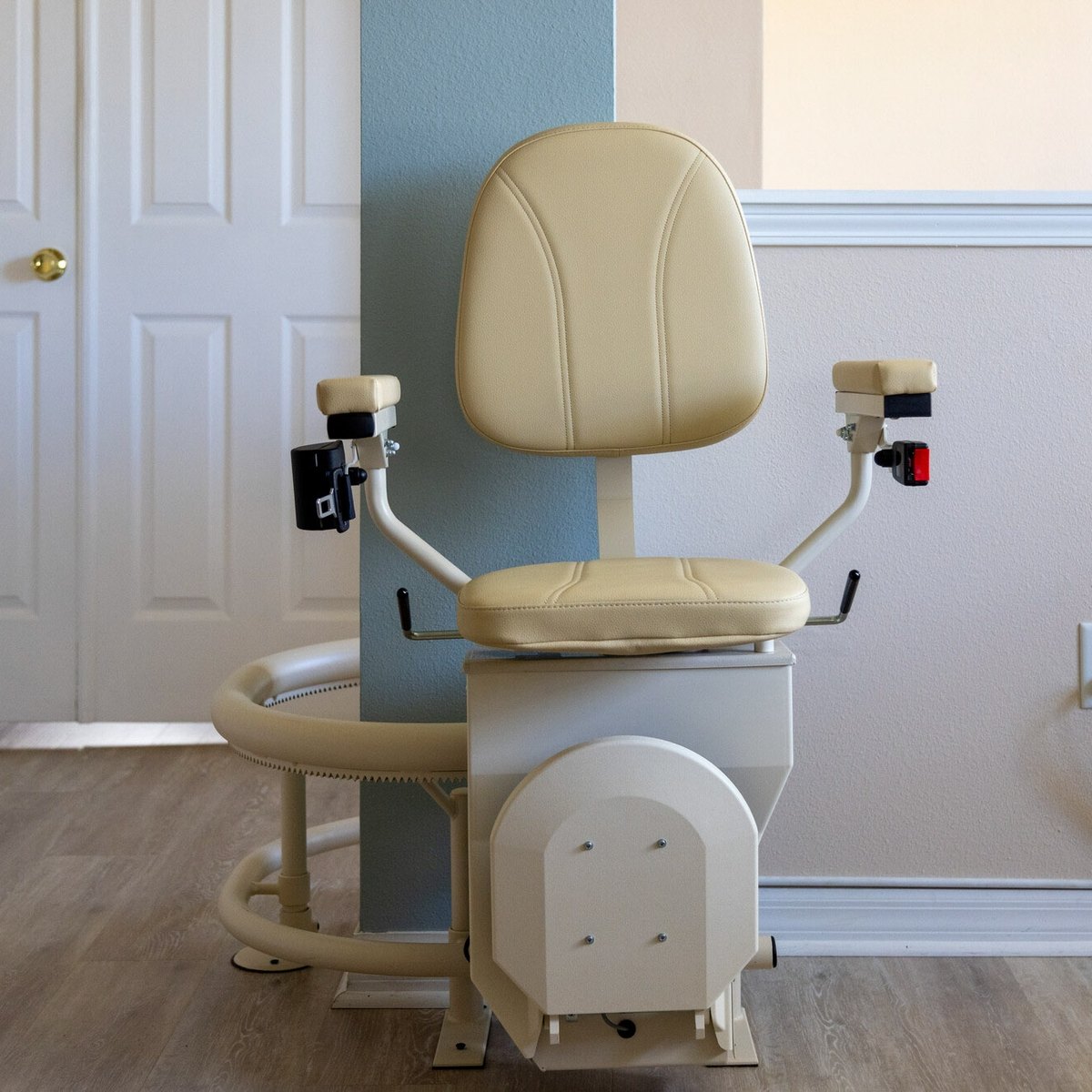

Harmar Helix Curved Stair Lift
The Harmar Helix is a curved stair lift with a rail custom-made to follow your staircase's turns and landings. It carries riders up to 350 pounds and runs quietly. At the top, the seat turns so you can step on and off more easily. Handheld remotes bring the lift to you or send it to the other floor.
- Rail made to fit your staircase
- Follows bends, landings and tight 180-degree switchbacks
- Carries riders up to 350 pounds
- Handheld remotes bring the lift to you

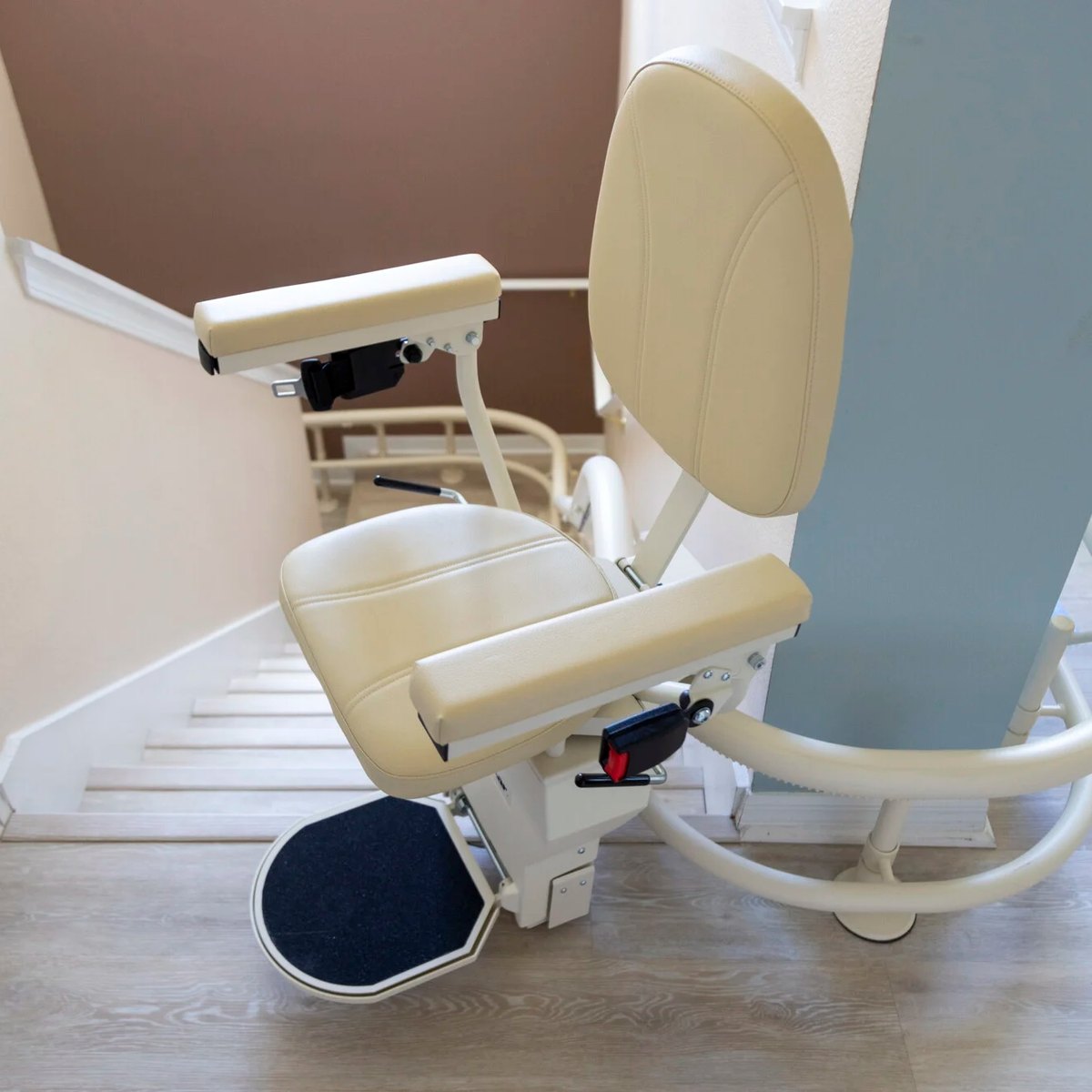

- Custom-made True-Curve rail follows your staircase's turns

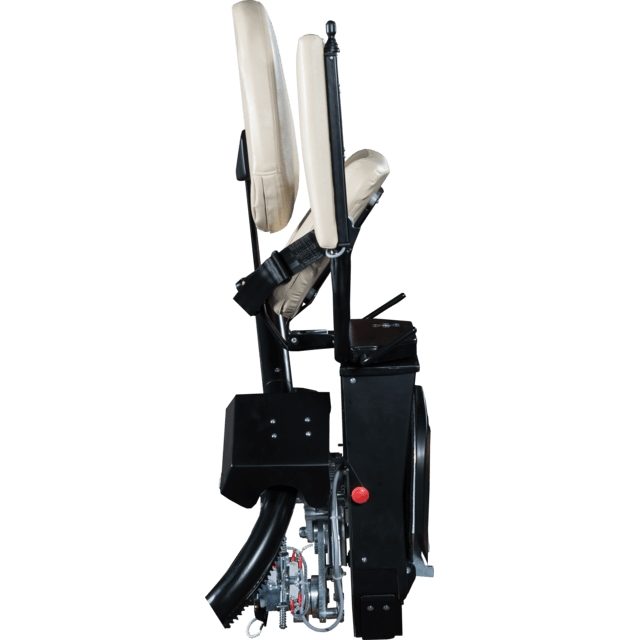

- Folds to 16 inches from the wall
- Quiet, smooth ride

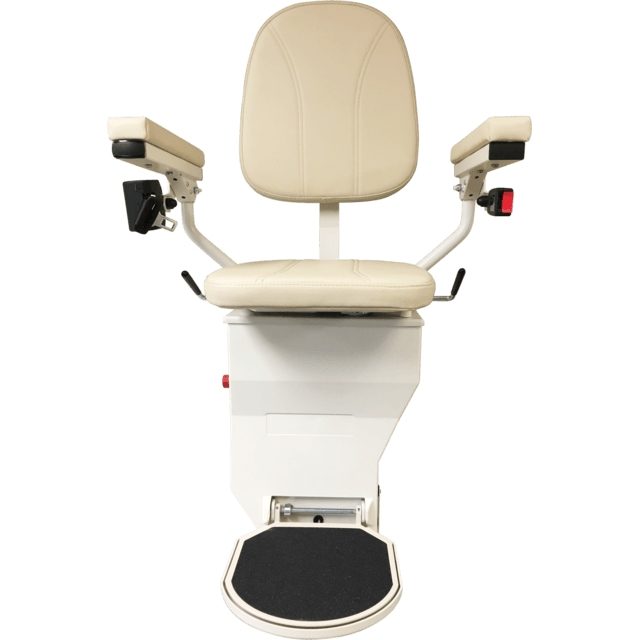

- Swivel seat makes getting on and off at the top easier
- Remotes bring the lift to you or send it away
- Rail, carriage and seat come in beige or black
- Weight capacity
- 350 lb
- Seat
- 19 in by 15 in

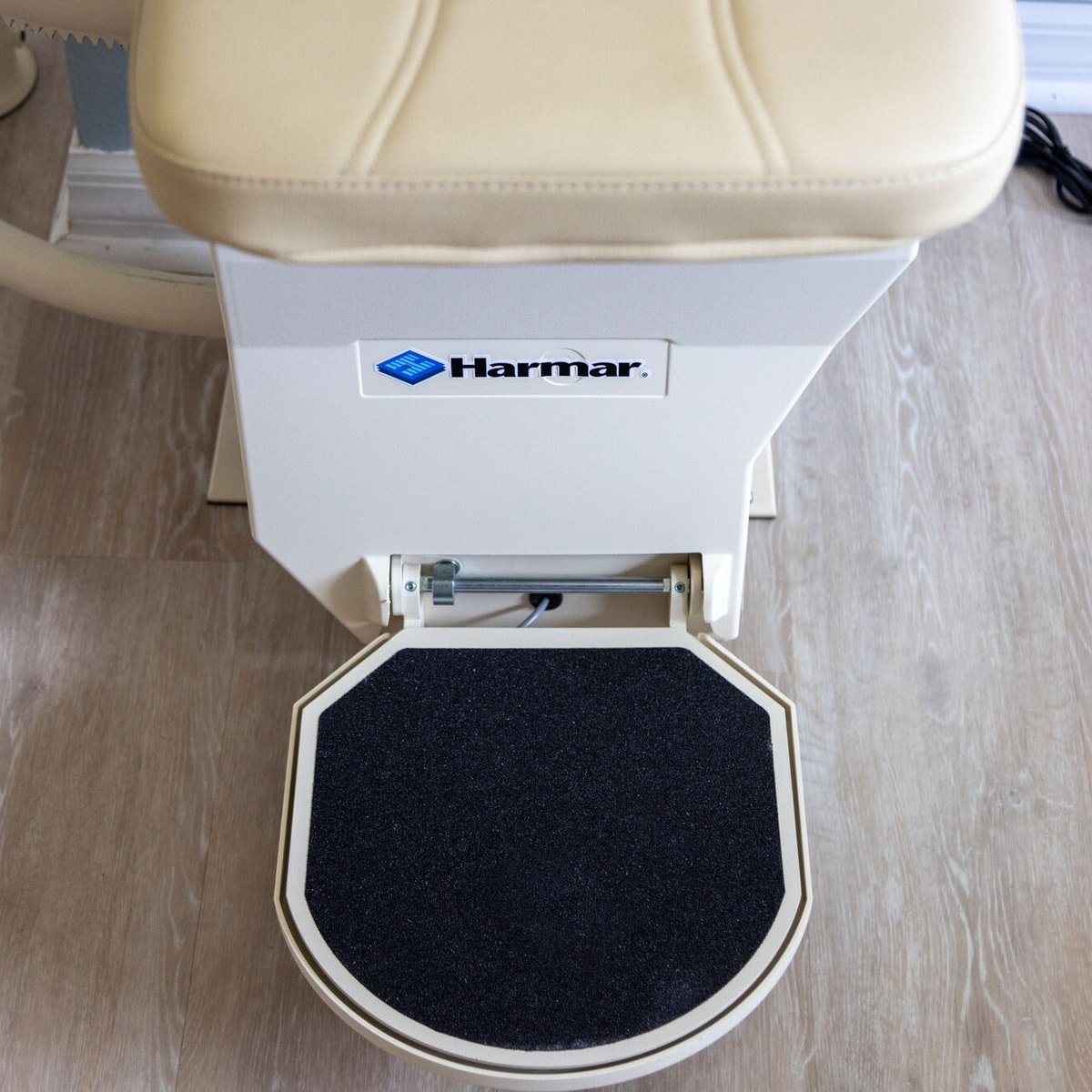

- Footrest
- 11 in by 12 in
- Speed
- 20 feet per minute
- Folded width
- 16 in from the wall
- Track length
- 16, 18 or 24 ft standard; up to 164 ft with added rail
- Stair angle
- Up to 58 degrees
- Drive
- Steel rack and pinion
- Direction and final limit switches
- Footrest and chassis obstruction sensors

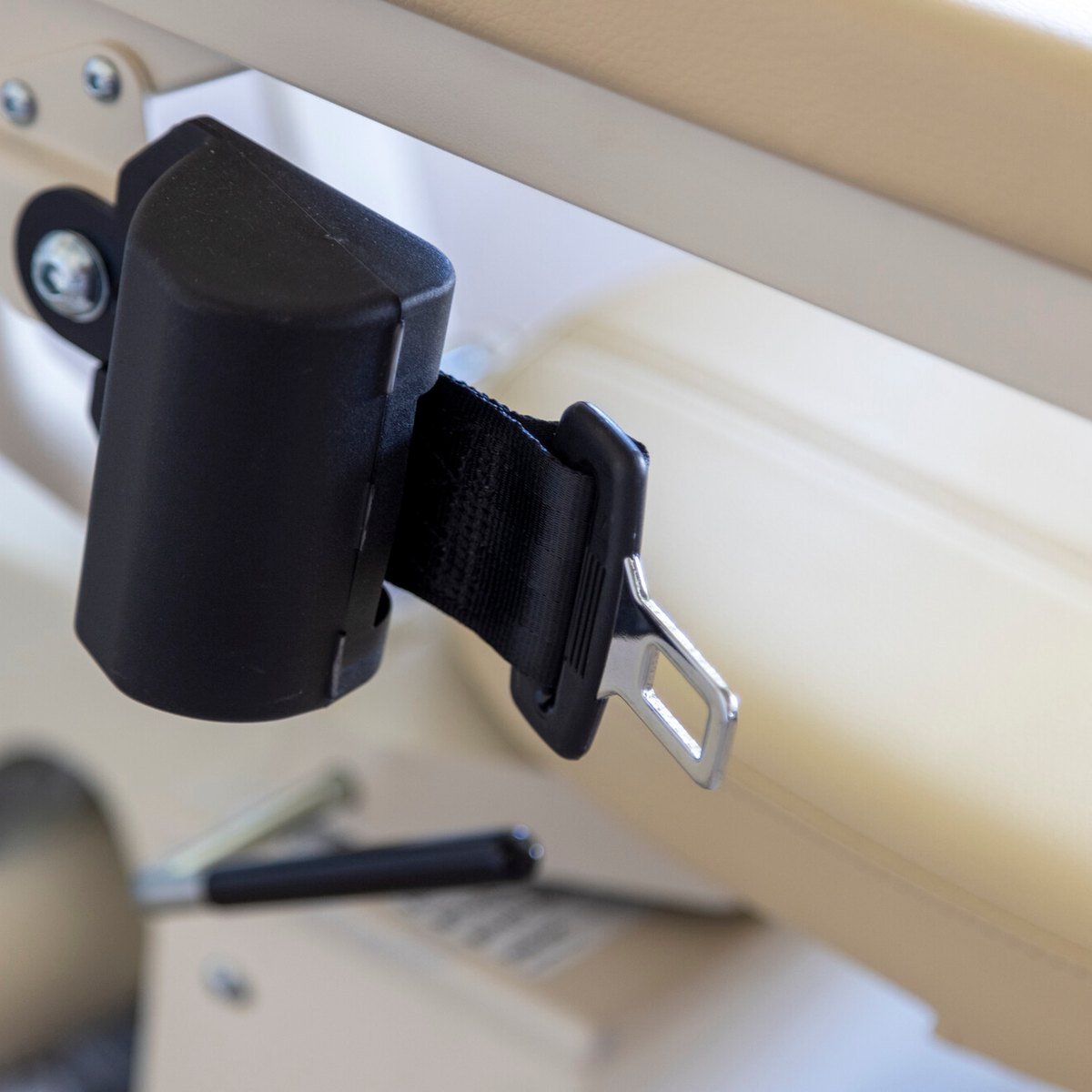

- Overspeed brake, a seat belt and a swivel interlock
- Lift moves only while you hold the control
- Options: a key switch, an emergency stop, extra remote controls, and an extra charging station
- Parts
- 2 years
- Battery
- 1 year
- Drive system and structure
- Limited lifetime
Questions
Frequently Asked Questions
A curved stair lift is an option when your staircase has turns or curves, or when you want one continuous ride across a landing. Its rail is made to follow the staircase's layout. For a single straight flight, a straight stair lift is usually the appropriate choice.
It would need to be assessed before relocation. The Helix rail is custom-made for your staircase, so you should not assume it will fit another home. An installer would need to confirm whether any components could be reused and what replacement parts would be required.
Usually, if the staircase is wide enough. Folded, the Helix sits 16 inches from the wall, so how much of the steps stays clear comes down to the width of your stairs.
We install the Helix on staircases with curves, turns, or intermediate landings throughout Utah. Learn more about our curved stair lift installation service or contact us for a free quote.
